Beltrami Co Highway 5
Mississippi River Highway Crossing
Near Bemidji, MN

Beltrami Co Highway 5

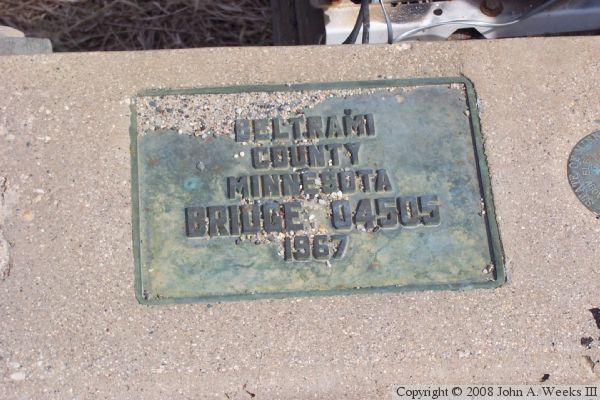

• Bridge ID: NBI 04505
• Location: River Mile 1315.5
• River Elevation: 1,368 Feet
• County: Beltrami
• Highway: Beltrami County Highway 5
• Daily Traffic Count: 105 (2003)
• Bridge Type: Prestressed Concrete
• Bridge Length: 69 Feet, 31 Foot Longest Span
• Bridge Width: 29 Feet, 2 Lanes
• Height Above Water: 6 Feet
• Date Built: 1967

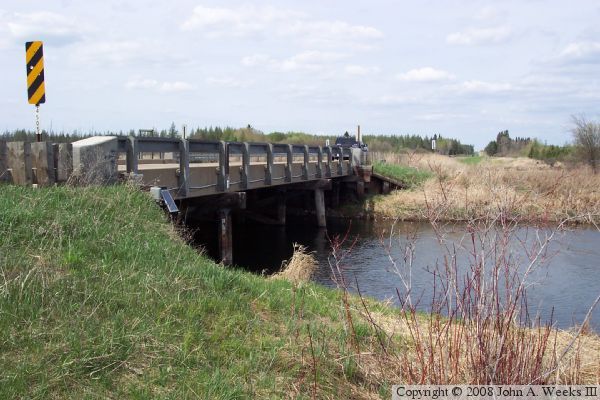

This bridge was built in 1967. It uses a prefabricated design that was common for smaller light spans of that era. A series of preformed concrete sections were placed side by side to create each of the three bridge spans. These concrete sections were cast in a factory using the prestressed technique. That allowed the bridge to be assembled relatively quickly out in the field.

According to the Mary Costello Book (Climbing The Mississippi River Bridge By Bridge, Volume 2), this bridge replaced the Solway Highway Bridge. That bridge failed and collapsed in 1967 when a loaded pulp truck crossed the bridge.

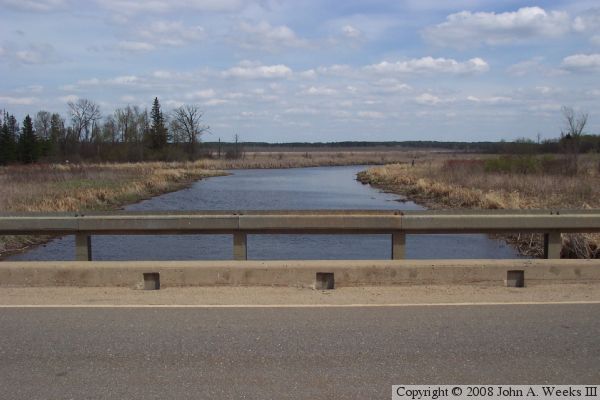

That bridge was located just to the north of the new bridge. The river makes a loop, running on both sides of the highway. The old bridge crossed near the top of the loop, where the river cut diagonally across the highway. When the new bridge was built, the loop was cut off, and the new bridge was built square to the highway. One of the photos below shows the resulting straight section of river channel where the loop was cut off.

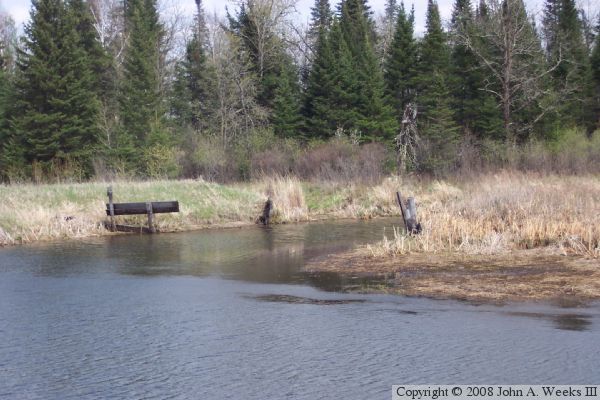

The bottom photo shows the remains of an earlier highway bridge just to the east of the tip of the loop in the Mississippi River. I am not sure if this was the location of the Solway Highway Bridge, or if this is a wooden trestle that predates that bridge.


Beltrami Co Highway 5
Beltrami Co Highway 5
Beltrami Co Highway 5
Beltrami Co Highway 5
