Beltrami Co Highway 8 (West Crossing)
Mississippi River Highway Crossing
Near Bemidji, MN

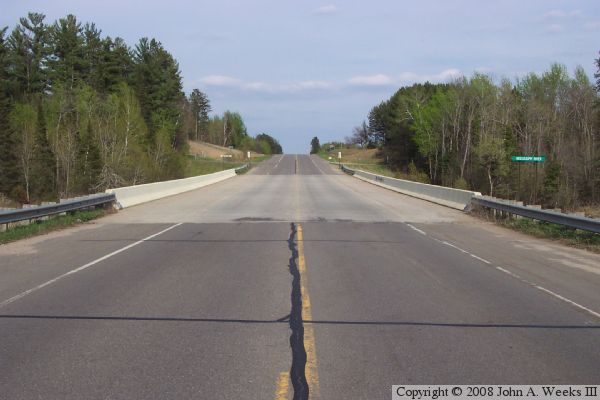

Beltrami Co Highway 8

• Bridge ID: NBI 04517
• Location: River Mile 1272.5
• River Elevation: 1,305 Feet
• County: Beltrami
• Highway: Beltrami County Highway 8
• Daily Traffic Count: 1,800 (2003)
• Bridge Type: Concrete Girder
• Bridge Length: 221 Feet, 72 Foot Longest Span
• Bridge Width: 44 Feet, 2 Lanes
• Height Above Water: 10 Feet
• Date Built: 1992

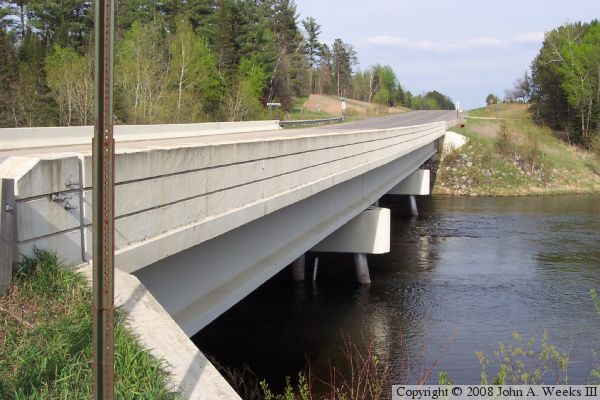

This bridge is the first of 3 consecutive non-descript prestress concrete girder bridges. Two of those bridges are on CSAH 8, this being the westermost of the two, plus another over CSAH 33. CSAH stands for County State-Aid Highway. These are roads that are major county roads, but not up to par with state highways, but certainly better than minor county roads.

This bridge replaced a 2-span steel pony truss bridge built in 1931. A pony truss bridge has a steel truss that runs along the sides of the roadway, but does not go over the top of the road.


Beltrami Co Highway 8
Beltrami Co Highway 8
Beltrami Co Highway 8
