US Highway 2 Near Ball Club
Mississippi River Highway Crossing
Near Ball Club, MN

US Highway 2 Near Ball Club

• Bridge ID: NBI 5760
• Location: River Mile 1221.5
• River Elevation: 1,278 Feet
• Counties: Cass, Itasca
• Highway: US Highway 2
• Daily Traffic Count: 3,600 (2004)
• Bridge Type: Steel Girder
• Bridge Length: 165 Feet, 70 Feet
• Bridge Width: 43 Feet, 2 Lanes
• Height Above Water: 7 Feet
• Date Opened: 1938

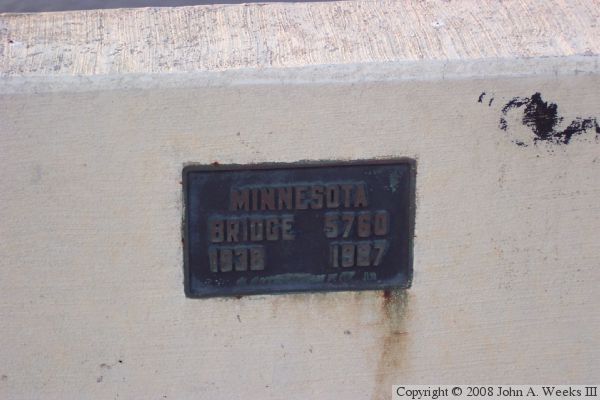

When looking at this bridge, the first thing that comes to mind is that there is no way that this modern looking steel and concrete bridge was built in 1938. Examining the bridge plate only adds to the mystery, it has two dates on it, 1938 and 1987. So, which is it? Well, both.

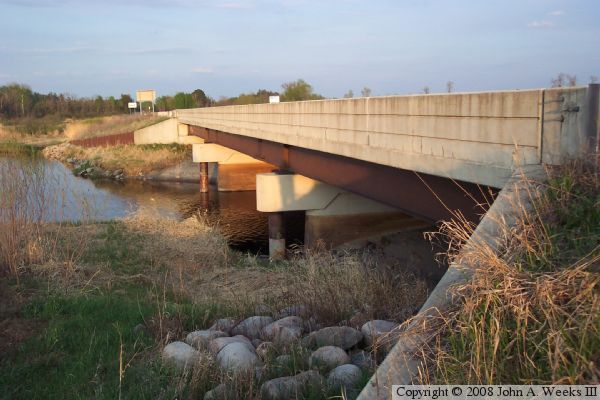

The US-2 bridge was built in 1938. It had two piers, steel girders, and a concrete deck. The railings were open metal rails that were bolted to the bridge deck. In 1987, the bridge was lowered and widened. To make this happen, the piers had to be made wider. The solution was to drive four new piles, and use those new piles to support a wider concrete cap on the old piers (after they were cut down slightly in height). Additional steel was put down on both sides of the existing steel, and a new wider deck was installed. New style concrete railings finished off the remodel job. The result is a very modern looking old bridge that is safer and will last many years into the future.

Prior to 1938, the river was spanned by a lift bridge. At the same time, the railroad bridge that runs parallel to US-2 had a swing bridge. This must have been a bridge lovers dream to be in this area as the river boat would come steaming up the river, and both bridges had to operate to allow the boat to pass.

This bridge is the second of five bridges that cross the Mississippi River where the great river is the boundry between Cass County and Itasca County.

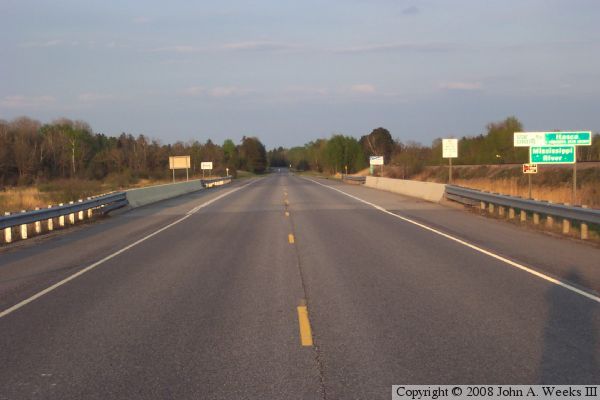

US Highway 2 Near Ball Club

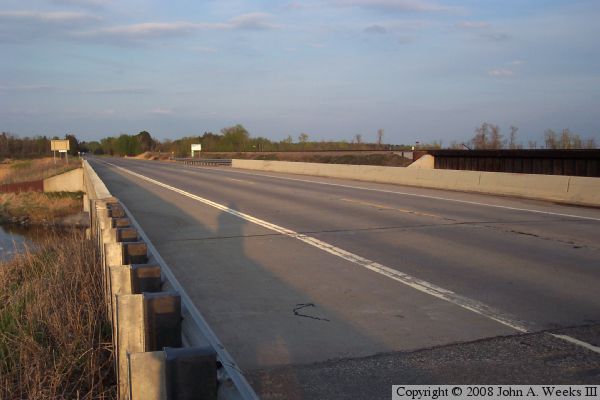

US Highway 2 Near Ball Club
US Highway 2 Near Ball Club
