Winnibigoshish Dam
Mississippi River Dam
Near Deer River, MN

Winnibigoshish Dam

• Location: River Mile 1248
• County: Cass, Itasca

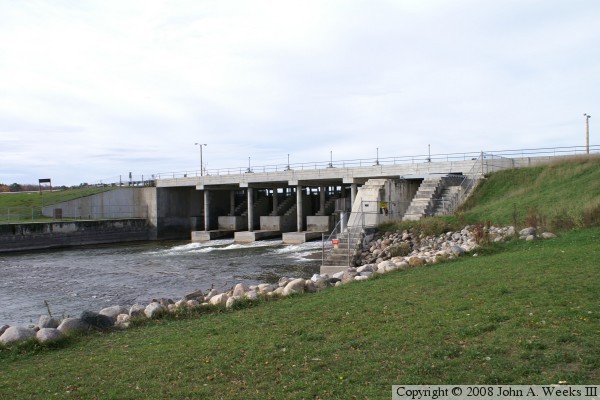

• Structure Type: Concrete Structure
• Structure Width: 169 Foot Main Structure
• River Elevation (Pool): 1,297 Feet
• River Elevation (Outflow): 1,284 Feet
• Water Fall: 13 Feet
• Date Built: 1899.
Original woodend dam was started in 1881 and finished in 1884. It was replaced with a concreate dam in 1899-1900. A 12-foot log sluice and a 5-foot fish ladder was added in 1912. These additions are no longer in use. The bridge was added in 1909, and rebuilt in 1990.

This was the first major resivour built on the Mississippi River. The US Army Corps of Engineers report that this was built as a resource that would benefit the entire nation. Water relased from northern resivours would help making the shipping season more predicatable and much safer. Today, the dam is used to keep the lake at a constant levelof 1,297 feet above sea level. The shipping lanes are managed by downstream locks and dams, leaving the lake available for recreational purposes.

The lake is 67,000 acres, with about 140 miles of shoreline. Unlike lakes in the Brainerd Lakes area, Winnibigoshish remains mostly undeveloped. As the fifth largest lake in Minnesota, it is considered to be the crown jewel for fishing, and some of the best walleye fishing in the world. One key to the excellent fish habitat is that this lake is located on a major river, which keeps the lake flushed clean.


Winnibigoshish Dam
Winnibigoshish Dam
Winnibigoshish Dam
Winnibigoshish Dam
Winnibigoshish Dam
Winnibigoshish Dam
Winnibigoshish Dam
