Meredosia Bridge
Illinois River Highway Crossing
Meredosia, IL
| • Bridge ID: |
NBI 000069001615775 |
| • Location: |
River Mile 71.3 |
| • River Elevation: |
420 Feet |
| • Highway: |
IL-104 |
| • Daily Traffic Count: |
2,400 (2005) |
| • Bridge Type: |
Steel Truss Through Deck |
| • Bridge Length: |
2,232 Feet, ??? Foot Longest Span |
| • Bridge Width: |
24 Feet, 2 Lanes |
| • Navigation Channel Width: |
555 Feet |
| • Height Above Water: |
72 Feet |
| • Date Built: |
Built 1936, Reconstructed 1984. |

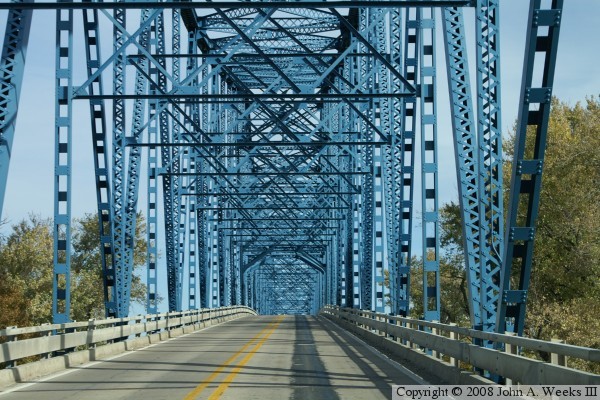

This 1936 era big metal monster crosses the Illinois River on the
west side of the small town of Meredosia. This bridge replaced an
earlier wagon bridge. A railroad bridge once crossed the river a
few hundred feet downstream from the highway bridge. The Meredosia
bridge was reconstructed in 1984. A group of bad floor beams were
discovered and fixed in the 1990s. The bridge was quickly inspected
and pronounced to be safe following the I-35W bridge collapse in
August, 2007. Despite the bridge being safe, it has a very low
sufficiency rating and is eligible for federal funds for replacement.
As of late 2007, the Illinois Department of Transportation has
earmarked $9-million to begin planning for a replacement bridge.
