US-169 Bridge
Minnesota River Highway Crossing
Le Sueur, MN

US-169 Bridge

• Structure ID: NBI 9295 (Northbound), NBI 9295A (Southbound).
• Location: River Mile 79.4.
• River Elevation: 731 Feet.
• Highway: US-169.
• Daily Traffic Count: 6,700 (2004) Per Span, 13,400 Total.
• Bridge Type: Steel Girder, Concrete Deck.
• Length: 1,100 Feet.
• Width: 27 Feet, 2 Lanes (Per Span).
• Navigation Channel Width: Non-Navigable.
• Height Above Water: 27 Feet (Estimated).
• Date Built: 1960.
This section of the 4-lane US-169 was built in 1960. Before that time, traffic ran through Henderson and along the west side of the Minnesota River and into the west side of Le Sueur. The old route still exists today as MN-93. This bridge is one of three times that US-169 crosses the Minnesota River, with the other two being the Bloomington Ferry Bridge and the US-169 bridge in Mankato.

As part of the 4-lane project, a pair of identical 1,100 foot steel girder concrete deck highway bridges were built. These are very modern and very functional, but also look totally utilitarian with no visual enhancements. This is very typical of the bridges built in the late 1950s and through the 1960s during the period when the highway systems were rapidly expanding.

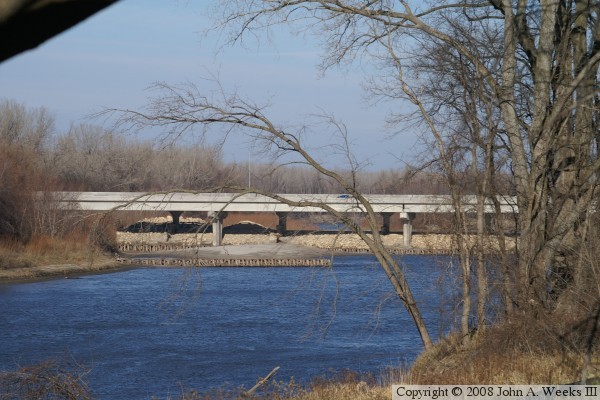

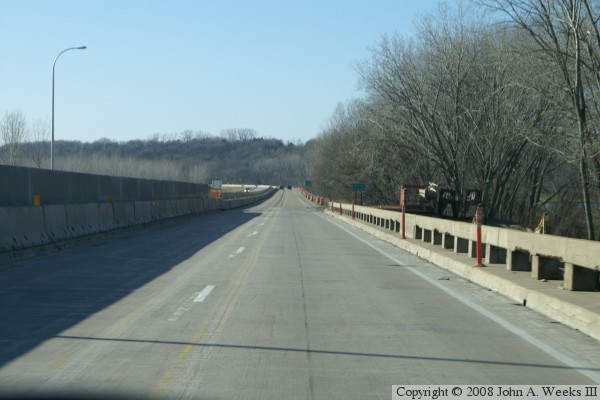

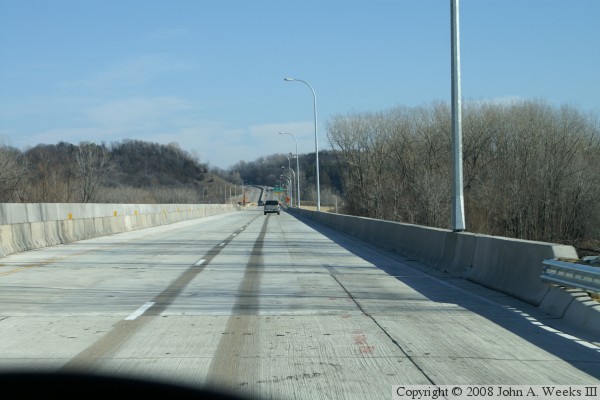

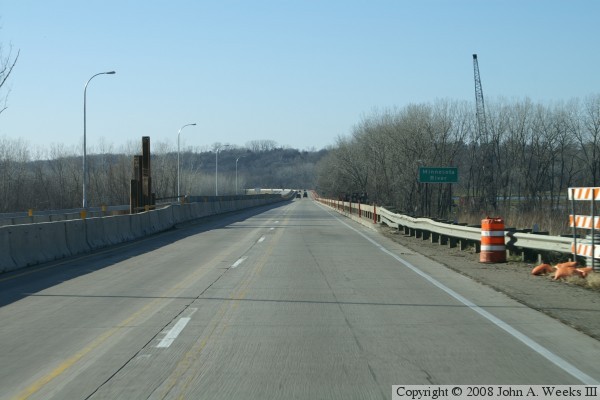

Fast forward to 2007, and these two bridges are now obsolete. To make matters worse, the river has carved out scour holes around the base of the support piers. Originally proposed for 2010, the bridge replacement project is moved up when bond money becomes available. In the photos below, we see that the southbound span is still the old bridge, while the northbound span is a new bridge. In the upper photo, we see a profile view of the new northbound span, which uses prestressed concrete girders rather than steel. The cut-off stubs of the old piers are visible, as well as the piers of the old bridge in the background.

Note, the stats above are for the old bridges. The new bridges have not been entered into the NBI as of December, 2007.

This area of the Minnesota River Valley is known as the Valley of the Jolly Green Giant. The Green Giant was founded in Le Sueur in 1903. It introduced a variety of very large diameter peas in 1925, known as the Green Giant variety. The Green Giant mascot appeared in 1928, and the company took the name Green Giant Company in 1950. Green Giant became part of Pillsbury in 1979, and is now owned by General Mills since 2001. Most of the canning facilities once owned by Green Giant are now owned by Seneca since the mid-1990s. While Green Giant no longer has a plant or offices in Le Sueur, the enormous wooden Jolly Green Giant sign still welcomes travelers on US-169 to the valley.


US-169 Bridge
US-169 Bridge
US-169 Bridge
US-169 Bridge
