Renville Co 1 - Redwood Co 101 Bridge
Minnesota River Highway Crossing
Redwood Falls, MN

Bridge

• Structure ID: NBI 7149.
• Location: River Mile 212.0.
• River Elevation: ??? Feet.
• Highway: Renville Co 1, Redwood Co 101.
• Daily Traffic Count: 1,750 (2003).
• Bridge Type: Steel Girder, Concrete Deck.
• Length: 313 Feet.
• Width: 30 Feet, 2 Lanes.
• Navigation Channel Width: Non-Navigable.
• Height Above Water: ???
• Date Built: 1957.

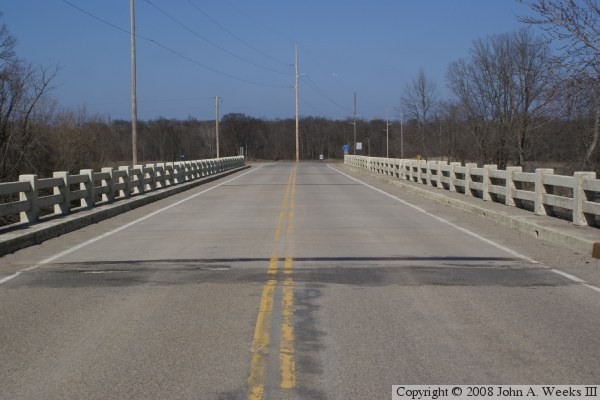

This is a very typical steel girder bridge from the era of the 1950s. It is a very functional bridge, but a bridge with absolutely not decorative features, which again is typcial of that era. Today, this would likely have been built as a prestressed concrete girder, much like many of the newer bridges on the lower section of the Minnesota River. A feature worth noting is the concrete fence style guard rails. This style is considered to be obsolete. The first reason is that they present a vertical surface to anything that strikes the rail. Second, they are open and allow road debris to be pushed into the river by snowplows. Most such bridges are being updated to the new style solid guard rail that features an angle at the bottom to redirect some of the force of an impact.

The highway 1 and highway 101 bridge is located about 3 miles from the small city of Redwood Falls. The acutal falls at Redwood Falls is on the Redwood River, which joins the Minnesota River just downstream from the highway bridge.

Richard W. Sears was the first agent for the railroad depot in North Redwood, the small village between Redwood Falls and the Minnesota River bridge. Sears was involved in a deal where a local jeweler refused to accept a shipment of watches. Rather than send the watches back, Sears accepted the package and sold the watches himself. This lead to the start of a mail-order business, and along with partner Alvah R. Roebuck, they formed Sears, Roebuck, and Company.


Bridge
Bridge
Bridge
Bridge
