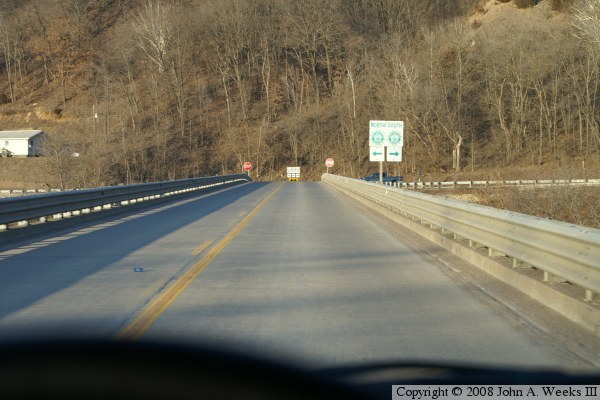

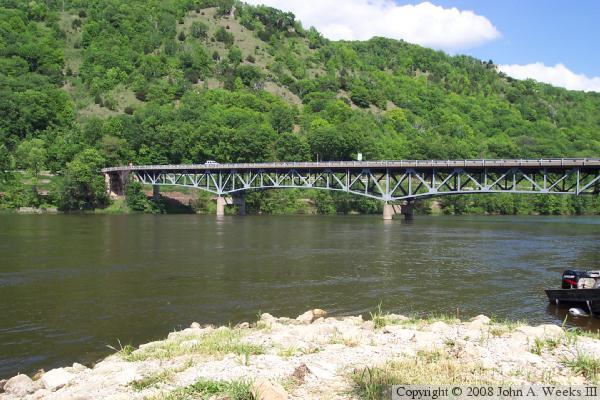

The Winneshiek Slough bridge features a top deck configuration where the roadway is sitting on top of a metal truss structure. The bridge has a very interesting sub-structure in comparison to the otherwise ordinary roadway segment.
| • Structure ID: | NBI B12000500000000. |
| • Location: | River Mile 663.4. |
| • River Elevation: | 620 Feet. |
| • Highway: | IA-9, WI-82 |
| • Daily Traffic Count: | 2,357 (2003). |
| • Bridge Type: | Steel Truss Top Deck. |
| • Length: | 639 Feet, 170 Foot Longest Span. |
| • Width: | 26 Feet, 2 Lanes. |
| • Navigation Channel Width: | 164 Feet. |
| • Height Above Water: | 13 Feet. |
| • Date Built: | Opened 1956. |
The Winneshiek Slough bridge features a top deck configuration where the roadway is sitting on top of a metal truss structure. The bridge has a very interesting sub-structure in comparison to the otherwise ordinary roadway segment.
Return To Upper Mississippi River Bridges Home Page
Photo and text by John A. Weeks III, Copyright © 2005, all rights reserved.
