Snowden Lift Bridge
Yellowstone Valley RR Missouri River Railroad Crossing
Nohly, MT

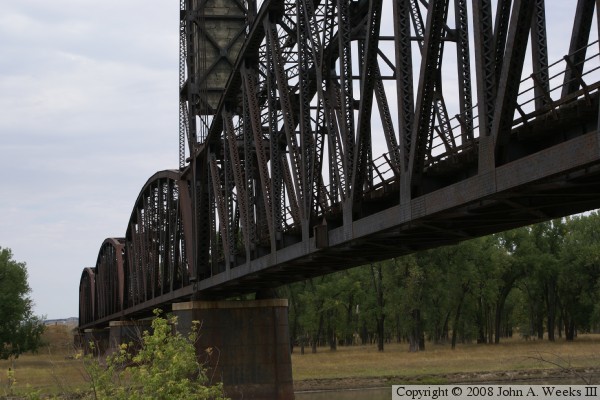

Snowden Lift Bridge

• Structure ID:
• Location: River Mile .
• River Elevation: 1,866 Feet
• Railroad: Owned By BNSF, Operated By Yellowstone Valley Railway
• Daily Traffic Count: 1 Train Per Day (Estimated)
• Bridge Type: Steel Though Truss w/Lift Span
• Length: 3,257 Feet, 296 Foot Longest Span (Estmated)
• Width: 1 Track
• Navigation Channel Width: Non-Navigable
• Height Above Water: ???
• Date Built: 1912
The Snowden Lift Bridge was built by the Great Northern Railroad as part of a never completed effort to build the Montana Eastern Railway into a second transcontential mainline. Through mergers, the bridge is now owned by the BNSF Railway. The Yellowstone Valley Railroad has a long term lease on the bridge.

At the time this bridge was built, the Missouri River was considered to be navigable. As a result, bridges had to have a minimum clearance of 80 feet. The railroad used a lift section to meet this requirement. This bridge is unique in that it is designed to have the lift mechanism and counterweight able to be moved to a different span of the bridge in the event that the river channel shifts. The lift span was seldom used. There are reports that it was operated in 1935 to accomodate a series of barge tows headed for the Fort Peck Dam construction project. On most of these barge runs, the barges were ballasted down to ride lower in the water to allow safe passage under the bridge. The lift equipment remains intact on this bridge, having operated no more than 16 times in its life.

When built, the Snowden Lift Bridge was open only to trains. In 1926, planking was installed on the deck along with gates at each end allowing the GN to covert the bridge into a toll bridge for car and truck traffic. Tolls were 50 cents per car and 15 cents per passenger. The fairs were changed in the 1940s to be 25 cents for a motocycle and 75 cents for trucks. Tolls were collected until 1956, when the new MT-58 bridge was built 4 miles downstream. The Snowen bridge remained open to vehile traffic until 1985.

The Snowden Lift Bridge remains the only lift bridge within the state of Montana. It is located 3.5 miles east of the Montana and North Dakato state line. It can be accessed from a gravel road heading west off of ND-58 a mile or two south of hte ND-58 river bridge. The north end still has an access road, but it appears to be posted as railroad property.

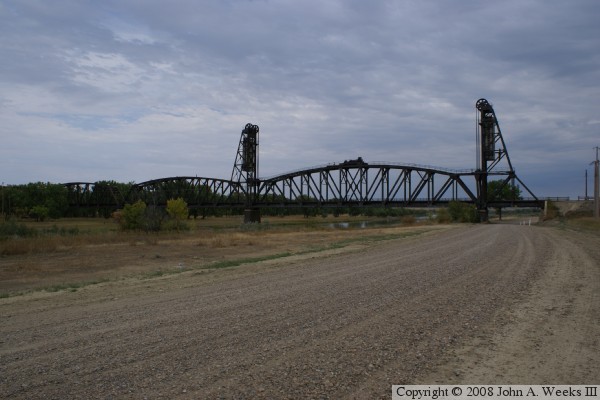

Snowden Lift Bridge

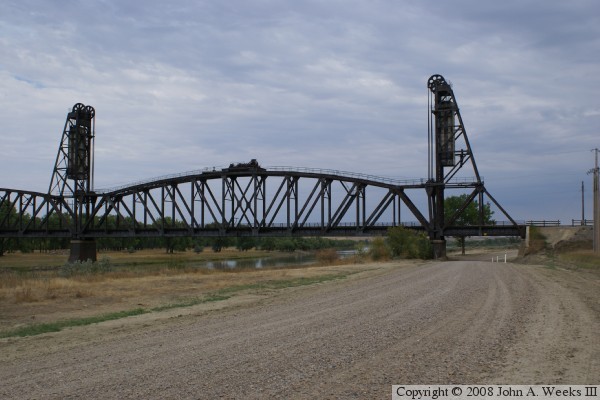

Snowden Lift Bridge

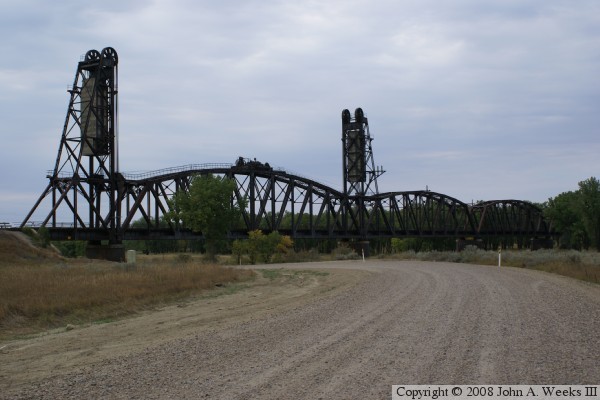

Snowden Lift Bridge
