Hernando De Soto Bridge
I-40 Mississippi River Crossing At Memphis
Memphis, Tennessee

Hernando De Soto Bridge

• Structure ID: NBI: 79I00400001.
• Location: River Mile 736.6.
• River Elevation: 187 Feet.
• Highway: I-40.
• Daily Traffic Count: 35,000 (2003).
• Bridge Type: Double Arch Truss Suspended Deck.
• Length: 19,535 Feet Overall, 900 Foot Main Spans.
• Width: 90 Feet, 6 Lanes.
• Navigation Channel Width: Two 870 Foot Mississippi River Channels,
300 Foot Wolf Harbor Channel.
• Height Above Water: 109 Feet.
• Date Built: Opened August 1972.

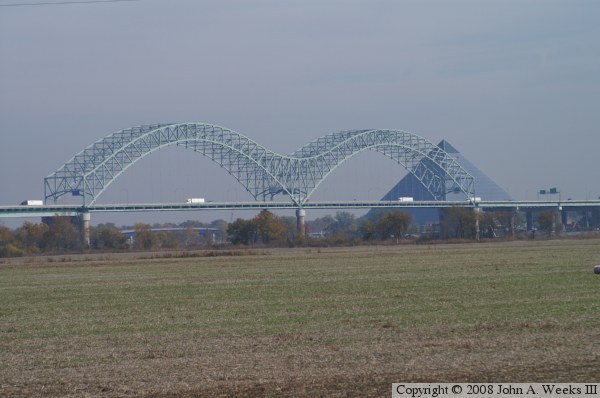

Folks from Memphis are so proud of living in the Big-M that they built their newest bridge in the shape of a big letter M. This has to be one of the most graceful spans across the mighty river. From a distance, it look thin and frail, yet up close, you realize what a huge monster of a structure it is. The bridge was lit a few years back, so Memphis has a night time light show attraction as well as a signature bridge.

An interesting fact is that both channels under the main spans are open for river navigation. While the east channel is part of the normal 9 foot navigation channel, the west channel can be used in periods of high water.

The Hernando De Soto bridge was closed for 9 hours on August 27, 2007, for an inspection after a sag was noticed in the roadway. A construction project has been underway to do a seismic retrofit to help the bridge withstand an earthquake on the nearby New Madrid Fault. Workers returned to the site that morning to find that a pier on the west side of the bridge has settled by 4 inches. Fortunately, this bridge is built with a redundant design, so it did not collapse. Inspectors found that the bridge deck was still adequately supported by other piers, so they reopened the structure.


Hernando De Soto Bridge
Hernando De Soto Bridge
Hernando De Soto Bridge
Hernando De Soto Bridge
Hernando De Soto Bridge
Hernando De Soto Bridge
Hernando De Soto Bridge
Hernando De Soto Bridge
Hernando De Soto Bridge
