Helena Bridge
US-49 Mississippi River Crossing At Helena
Helena, Arkansas

Helena Bridge

• Structure ID: NBI: 000000000002899.
• Location: River Mile 661.8.
• River Elevation: 151 Feet.
• Highway: US-49.
• Daily Traffic Count: 7,000 (2002).
• Bridge Type: Steel Truss Through Deck.
• Length: 5,204 Feet Overall,
3,108 Foot Superstructure,
840 Foot Longest Clear Span.
• Width: 28 Feet, 2 Lanes.
• Navigation Channel Width: 800 Feet.
• Height Above Water: 119 Feet.
• Date Built: Opened July 27, 1961.
Because of trees and privately owned land, it is hard to get a side view of this bridge. That lack of a side view hides the fact that this is one long bridge. The superstructure has 5 spans, for a length that is longer than the I-10 bridge in Baton Rouge or the I-910 bridge in New Orleans. When you cross the bridge, it goes on and on and on. At the same time, the bridge goes from levee to levee, so the approach roads are relatively short and steep.

I would enjoy learning why this bridge was built at this location. Helena is a very small town, and, at least today, has very little going on. The opposite side of the river has nothing but a small casino. I would think that there were other more populated areas that could have made better use of this bridge.

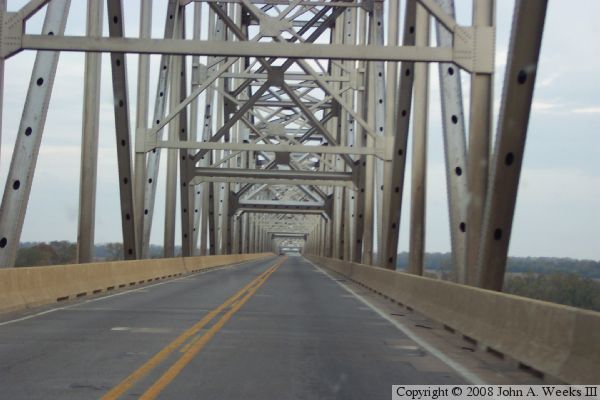

Helena Bridge

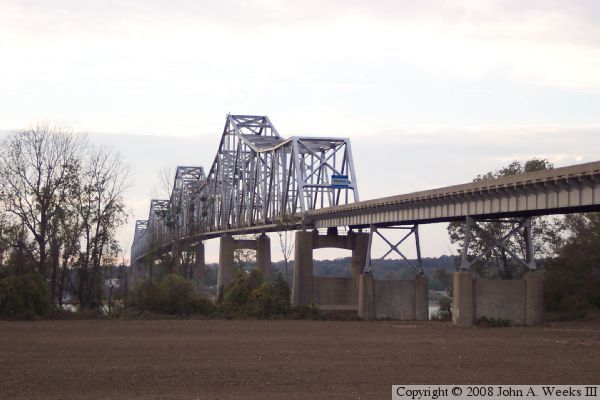

Helena Bridge

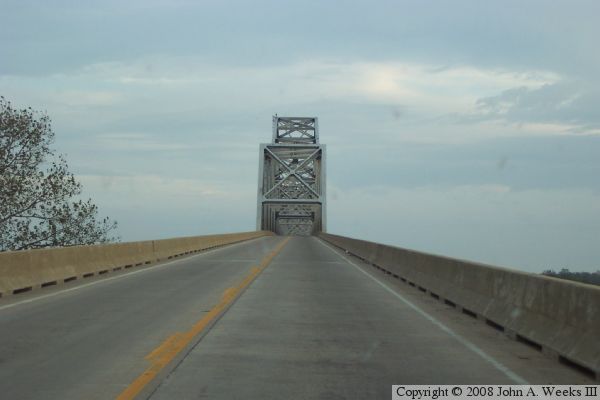

Helena Bridge

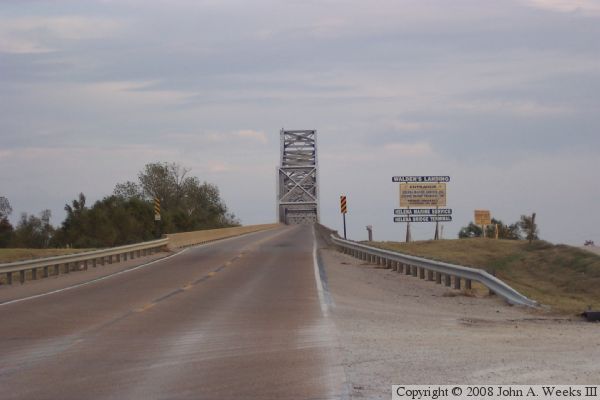

Helena Bridge
Helena Bridge
