MN State Highway 115
Mississippi River Highway Crossing
Camp Ripley Junction, MN

MN State Highway 115

• Bridge ID: NBI 4969
• Location: River Mile 973.5
• River Elevation: 1,118 Feet
• County: Morrison
• Highway: MN Highway 115
• Railroad: BNSF Railroad
• Daily Traffic Count: 2,000 (2004)
• Daily Traffic Count: 1 Train Per Day (Estimated)
• Bridge Type: Steel Girder
• Bridge Length: 412 Feet, 75 Foot Longest Span
• Bridge Width: 28 Feet
• Height Above Water: 17 Feet
• Date Built: 1930

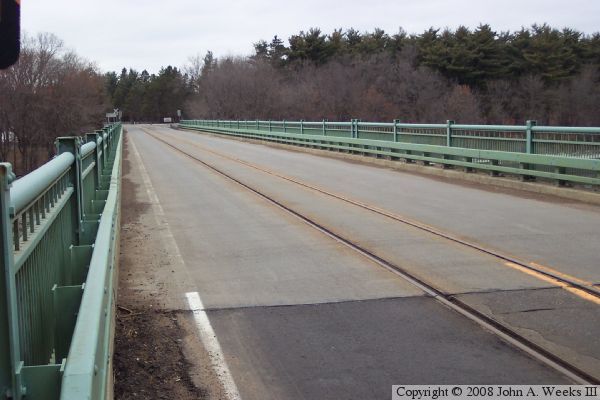

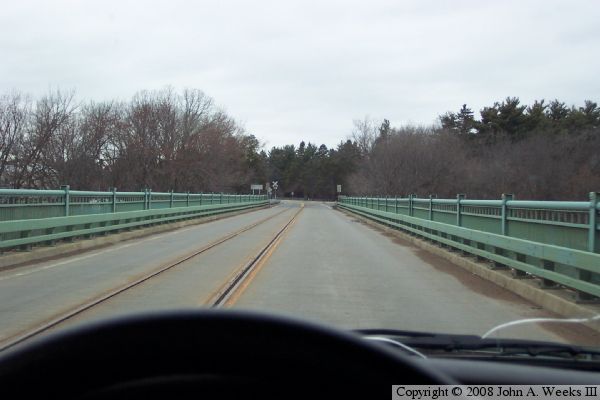

The MN-115 bridge is one of the most unusual of all Mississippi River crossings. We have seen bridges that share a structure with trains. We have seen trains above, below, and next to highway traffic. This is the one and only remaining bridge over the great river where cars and trains use the same roadway. The other similar bridge was the McKinley Bridge in St. Louis. It had one traffic lane that was shared with a railroad track, much to the surprise of any motorist who had a locomotive catch up behind them as they were crossing the bridge.

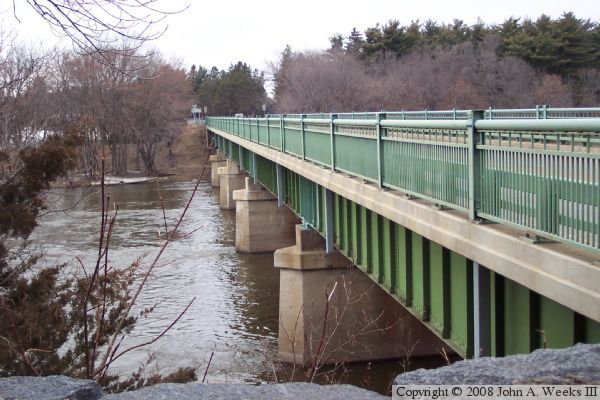

Other than the unusual arrangment of roadway and railroad track, this is a very standard steel girder bridge. It was built in 1930, but updated twice since then, most recently in the late 1990s.

The MN-115 bridge is the main highway link serving Camp Ripley, a major national guard training base. The guard will often meet at this base and assemble troops and equipment for deployment. From here, they can load up on rail cars and ship out as a unit.


MN State Highway 115
MN State Highway 115
MN State Highway 115
MN State Highway 115
